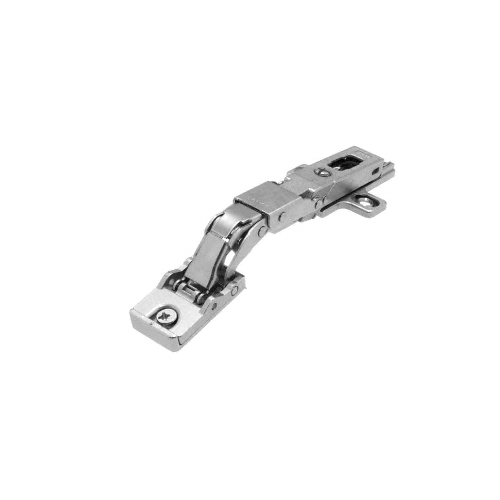

CRL UV99WG UV European Style Glass-to-Wood Hinge

CRL’s UV Glass-to-Wood Hinge features a nickel plated finish and a positive action close. Made popular on kitchen cabinets and stereo furniture. This side wall mounted Hinge comes with a plate that is UV bonded to the glass door. The face of the Hinge snaps into the mounting plate which connects the door to the Hinge. Maximum recommended door size using two Hinges is 24″ (610 mm) wide and 36″ (914 mm) high, with a maximum weight of 20 lbs. (9 kg). Using three Hinges increases the maximum door height to 60″ (1524 mm) and weight to 40 lbs. (18 kg). However, the maximum door width remains at 24″ (610 mm). Minimum order is one each.
