CRL SUP06SB Satin Brass Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 1/4″ to 5/16″ Thick Glass

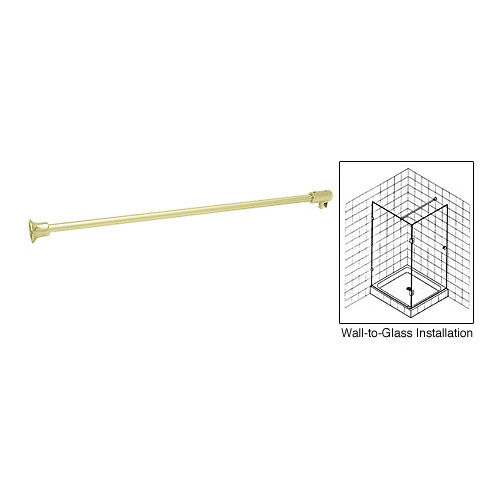

These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel.
Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4″ to 1/2″ (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. Longer length Bars only are available separately.
SPECIFICATIONS:
Material: 3/4″ (19 mm) Diameter Tubular Brass Bar, Solid Brass End Caps
Bar Lengths: 39″ (1 m); 51″ (1.3 m)
Glass Thickness Range: 1/4″ to 1/2″ (6 to 12 mm)
Includes: All Required Mounting Hardware

.
