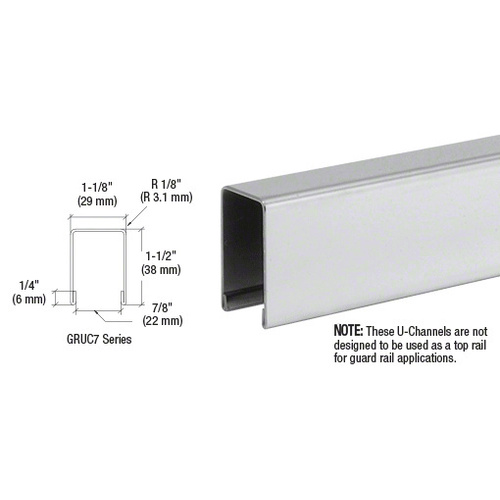

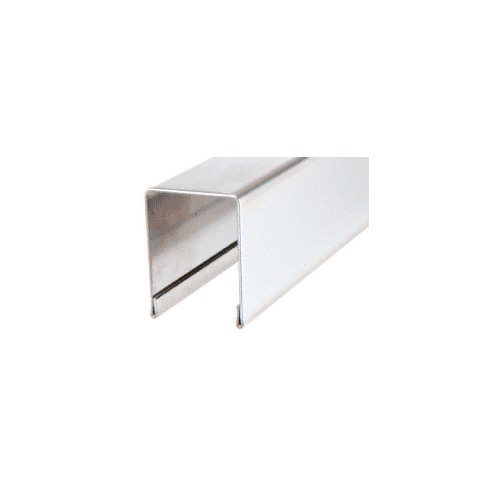

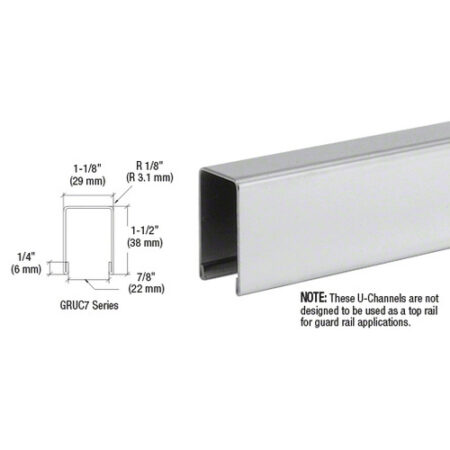

CRL GRUC7PS10 Polished Stainless U-Channel Cap for 3/4″ Glass

CRL U-Channel Cap protects the edge of the glass and secures glass panels together. Standard Stainless Alloy is 304 and material thickness is 18 gauge. Alloy 316 is available on special order. NOTE: These U-Channels are not designed to be used as a top rail for guard rail applications.
NOTE: When used with 3/4″ (19 mm) glass, the proper Cap Rail Vinyl and Cat. No. 95CBL Silicone should be used to secure the glass.
Please contact DK Hardware Sales Department for additional information or a quote.

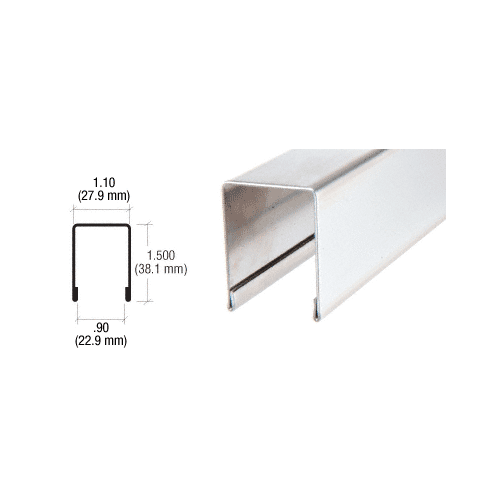

SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: .050 (1.27 mm)
Stock Length: 10′-0″ (3.05 m)
Typical Uses: Protects the Edge of the Glass and Secures Glass Panels Together in Cap Railing Installations
Product Warning:
SS Channel or Bar must Ship Common Carrier Only; No UPS. UPS. Cannot be cut-to-size.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
