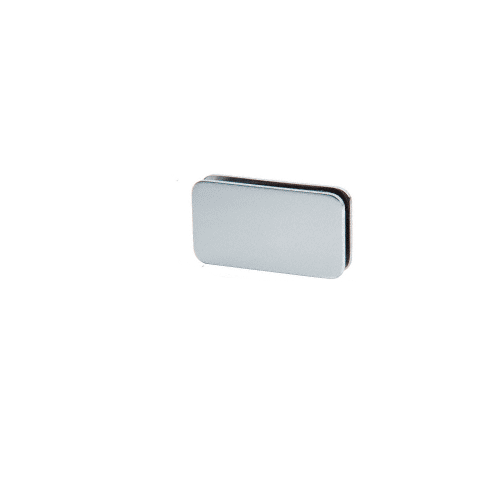

CRL GCB680SC Satin Chrome 180 Degree Junior Traditional Style Fixed Glass Clamp for 1/4″ Glass

CRL Junior Traditional Style 180 Degree Glass-to-Glass Clamps have rounded corners for a “smooth” look. Clamps are ideal for fixed transom or inline panel installations in frameless shower enclosure. They feature solid brass construction and a variety of finishes to match our complete line of door hinges and clamps. 180 Degree Glass-to-Glass Clamps are designed to secure two glass panels inline. These solid brass clamps are typically used in custom wall partitions, transoms, showcases, trophy cases, and ‘all-glass’ enclosures. They will instantly add a look of quality to the appearance of your project. Drawings and templates are available.
Glass Fabrication: Stud will fit between panels with 13/32″ (10 mm) gap, or you can notch the glass around the screw stud for a tighter fit.
SPECIFICATIONS:
Glass Thickness: 1/4″ (6 mm)
Material: Solid Brass
Includes: Gaskets
Hole Diameter Required: 7/16″ (11 mm) gap required between two panels, or you can notch the panels around the screw for a tighter fit.

.
