CRL CRL9760 Adjustable Spring Power 90 Degree Hold Open 3/4″ Long Spindle Overhead Concealed Door Closer Body Only

This CRL Adjustable Spring Power Overhead Concealed Door Closer with Extended 3/4″ (19 mm) Length Spindle is available to meet Federal A.D.A. Opening Force requirements when used in conjunction with Patch Fitting and Rail Hardware. The Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105 degree Hold Open and No Hold Open models are available. Closer bodies fit into standard 1-3/4″ x 4″ (44 x 102 mm), or larger, extrusions. Interchangeable with International, Jackson® and similar brands of Overhead Concealed Closers. Mounting Clips and instructions are included with each Door Closer Body.

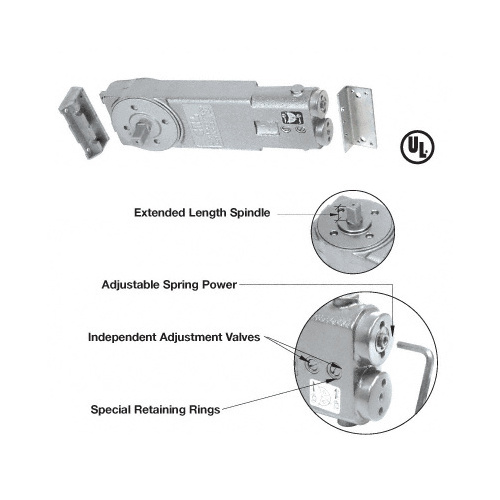

Extended Length Spindle
3/4″ (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
Weight and Size Limitations:
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42″ (1.07 m)
Interior Door Width: 48″ (1.22 m)
All Doors Height: 96″ (2.44 m)
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

.
