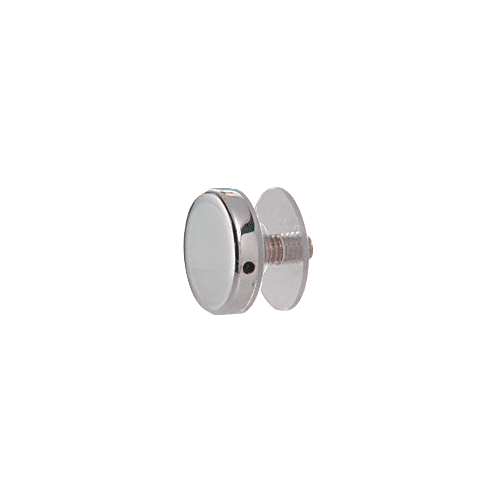

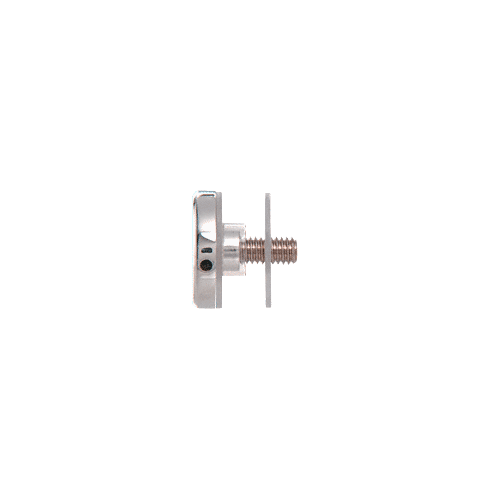

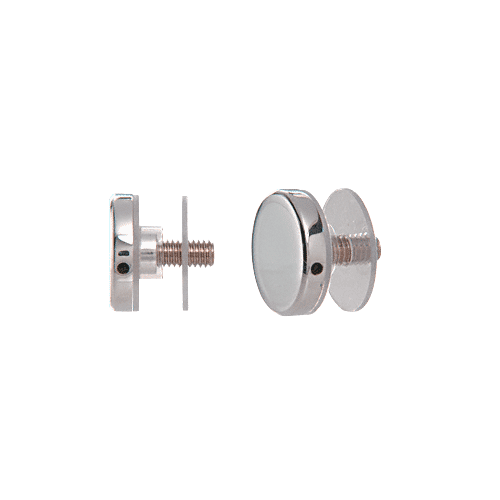

CRL CAP114PS 316 Polished Stainless 1-1/4″ Diameter Standoff Cap Assembly

CRL 1-1/4″ Diameter Standoff Cap Assemblies are designed to be used with our 1-1/4″ (32 mm) Standoff Bases, Standard Cap Assemblies are available in matching finishes, and are easily tightened when being installed into Bases by using our Cat. No. S0W Standoff Wrench. They are used to create displays, furniture or signage. Available in brass, chrome, brushed stainless, gun metal and satin chrome finishes, they can be used indoors or outdoors. There is also a CRL Flush Cap Assembly in the brushed stainless finish. Custom finishes quoted upon request.
NOTE: Panels require 5/8″ (16 mm) holes for assembly.
Cap Assemblies Consist of:
1 Each Cap
1 Each 1″ (25.4 mm) Allen Screw
2 Each Washers (Cat. Nos. SW114L and SW114S)
1 Each Vinyl Sleeve (Cat. No. SM716)
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
