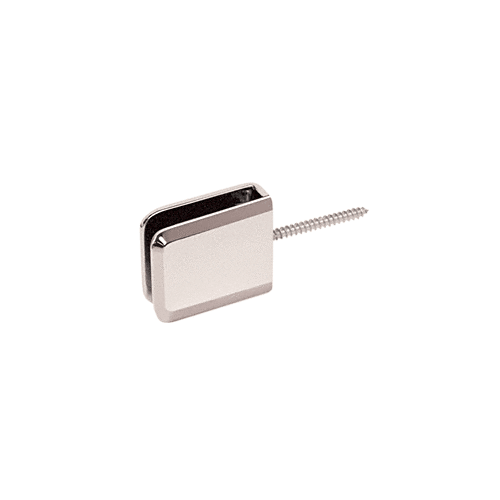

CRL BGC186PN Polished Nickel Square Beveled Wall Mount Movable Transom Clamp
CRL Beveled Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. They can also be used in combination with our Glass-to-Glass Movable Transom Clamps. Clamp must be centered on the transom to achieve balanced movement. Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. BGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8″ to 1/2″ (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4″ (19 mm) Holes; BGC188 Requires a 3/4″ (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
NOTE: Maximum transom size is 16″ x 30″ (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. .
.
CRL BGC186PN Polished Nickel Square Beveled Wall Mount Movable Transom Clamp
Description
- Use Monolithic Tempered Glass
- For 3/8″ to 1/2″ (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Solid Brass Material
- Wall Mount, and 180 Degree Models Available
Additional Information
| Width | |
|---|---|
| Size | |
| Height | |
| Hole Required in Glass | |
| finish | Antique Brass, Brass, Brushed Nickel, Brushed Satin Chrome, Chrome, Gold Plated, Gun Metal, Oil Rubbed Bronze, Polished Nickel, Satin Nickel |
| Mounting Type | |
| Material | |
| Glazing Thickness | |
| Finish/Color | Brushed Nickel, Oil Rubbed Bronze, Polished Chrome, Polished Nickel |
| Mounting Style |
